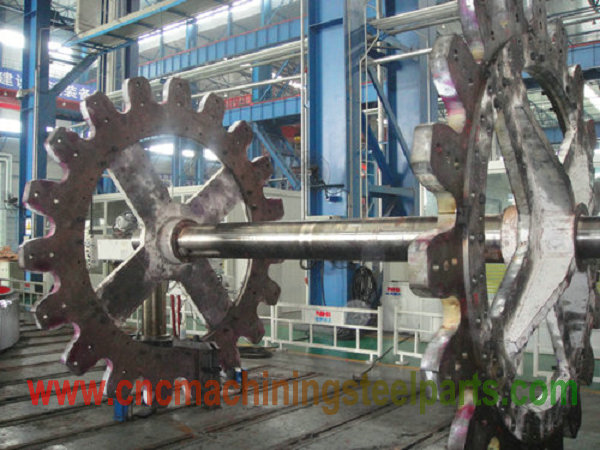

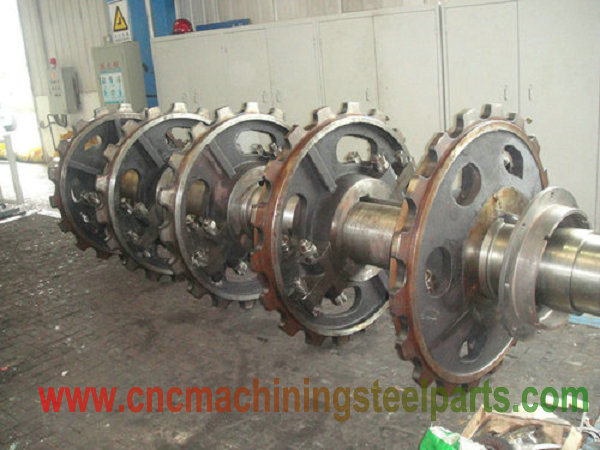

Sprocket Gear Wheel Chain Pinion Wheel As Chain wheel Or Sprocket Wheel

Sprocket Gear Wheel Is a Kind Of Wheel With Inlaid Button Sprocket Teeth, Which Is Used To Mesh With The Block With Accurate Pitch On The Pitch Chain Ring Or Cable.

Chain Pinion Wheel Are Widely Used In Chemical Industry, Textile Machinery, Escalators, Wood Processing, Three-Dimensional Parking Garage, Agricultural Machinery, Food Processing, Instrumentation, Petroleum And Other Industries Of Mechanical Transmission.

Tooth Profile Of Sprocket

The Sprocket Tooth Profile Must Ensure That The Chain Enters And Exits Meshing Smoothly And Economically, And Minimize The Impact And Contact Stress Of The Chain Joints During Meshing, And Be Easy To Process.

It Is Composed Of Three Arcs AA, AB, CD And a Straight Line BC, It Is Not Necessary To Draw End Profile On Sprocket Working Drawing. It Is Only Necessary To Indicate On The Drawing That “Tooth Profile Is Manufactured According To 3rgb1244-85”, But The Axle Profile Of Sprocket Should Be Drawn.

Sprocket Structure

Small Diameter Sprockets Are Generally Made Into Integral Type; Medium Diameter Sprockets Are Mostly Made Into Spoke Type, Which Opens Holes On The Spoke Plate For Easy Handling, Loading And Weight Reduction; Large Diameter Sprockets Can Be Made Into Combination Type, And The Ring And Core Can Be Made Of Different Materials At This Time. For Example, c45, Stainless Steel And Other Materials.

Sprocket Material Should Ensure Sufficient Strength And Wear Resistance Of Sprocket Teeth, So Sprocket Teeth Are Generally Heat Treated To Achieve a Certain Degree Of Hardness.
